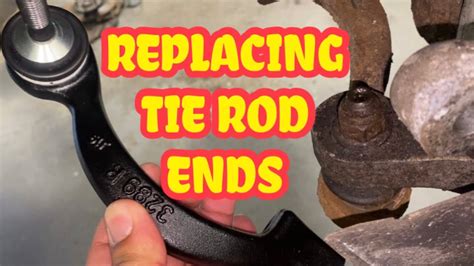

Step-by-Step Guide on How to Remove a Tie Rod End Like a Pro

Have you ever tried to remove a tie rod end without success? Don't worry; you're not alone. Tie rod ends are notoriously difficult to remove, especially if they have been in place for a long time. However, with the right tools and techniques, you can easily remove a tie rod end from your vehicle.

Before we dive into the process of removing a tie rod end, let's first understand what a tie rod end is. The tie rod end connects the steering knuckle and the steering gear. It is responsible for transmitting the movement of the steering wheel to the wheels of the vehicle. A damaged or worn tie rod end can result in poor handling and steering problems.

Now that we know what a tie rod end is let's move on to the steps for removing it. The first step is to loosen the jam nut that secures the tie rod end to the steering knuckle. You can use a wrench or pliers to do this.

Next, you need to separate the tie rod end from the steering knuckle. Depending on the type of vehicle you have, this may require a special tool known as a tie rod end puller. This tool will help you remove the tie rod end without damaging the steering knuckle.

If you do not have a tie rod end puller, you can use a pickle fork. Place the fork between the tie rod end and the steering knuckle and hit it with a hammer until the tie rod end breaks free. However, this method may damage the steering knuckle, so be careful.

Once the tie rod end is free, you can remove it from the steering gear. Use a wrench to unscrew the tie rod end from the steering gear and remove it from the vehicle.

Now that you have removed the old tie rod end, it's time to install a new one. Make sure to match the new tie rod end to the old one and screw it into place. Then, tighten the jam nut to secure the tie rod end.

It's essential to have proper alignment after installing a new tie rod end. Improper alignment can cause premature wear on your tires and affect handling. You can take your car to a mechanic for alignment or do it yourself with an alignment tool.

In conclusion, removing a tie rod end may seem like a daunting task, but with the right tools and techniques, it can be done easily. Remember to take your time and be careful not to damage the steering knuckle. A properly installed tie rod end will ensure better handling and steering of your vehicle.

"How To Remove A Tie Rod End" ~ bbaz

Introduction

Tie rod ends are an essential component of a vehicle's steering system. They connect the steering knuckles to the steering gear, allowing your wheels to turn when you steer the wheel. Over time, tie rod ends can become worn out or damaged, causing steering problems and unsafe driving conditions. If you notice your vehicle is pulling to one side, or if there is a vibration in your steering wheel, it may be time to replace your tie rod ends. In this article, we will discuss how to remove tie rod ends from your vehicle.

Step 1: Safety First

Before you start any repairs on your vehicle, you need to make sure you are working in a safe environment. Start by jacking up your vehicle and placing it on jack stands. Make sure the vehicle is secure and cannot move while you are working on it. Wear protective gloves and safety glasses to protect yourself from injuries.

Step 2: Removing the Tie Rod End Nut

The first step in removing a tie rod end is to loosen and remove the retaining nut. Use a socket wrench and tighten it onto the nut. Use the wrench to turn the nut counterclockwise. You may need to use a breaker bar to free up a tight nut. Once the nut is removed, set it aside in a safe place.

Step 3: Separating the Tie Rod End from the Steering Knuckle

The next step is to separate the tie rod end from the steering knuckle. To do this, you'll need a tool called a tie rod end separator or a ball joint separator. Place the forked end of the tool over the tie rod end stud and tap the other end with a hammer until the tie rod end separates from the steering knuckle.

Step 4: Removing the Tie Rod End from the Steering Gear

After you have removed the tie rod end from the steering knuckle, the next step is to remove it from the steering gear. Use a wrench to loosen and remove the nut that secures the tie rod end to the steering gear. Then use pliers to remove the cotter pin that holds the tie rod end stud in place. With the cotter pin removed, you can unscrew the tie rod end from the steering gear.

Step 5: Replacing the Tie Rod End

With the old tie rod end removed, you can now install the new one. Start by screwing the new tie rod end into the steering gear. Then attach the tie rod end to the steering knuckle and tighten the retaining nut. Make sure the cotter pin is inserted correctly to hold the tie rod end stud in place.

Step 6: Checking the Alignment

When you have replaced the tie rod end, you need to check your vehicle's wheel alignment. A misaligned vehicle can cause uneven tire wear, which can be costly to fix. Take your vehicle to a trusted mechanic or an alignment center to have the wheels aligned.

Tips for Removing Tie Rod Ends

Tip 1: Always Use Safety Gear

Safety should be your top priority when working on your vehicle. Make sure you wear gloves and safety glasses to protect yourself from injuries.

Tip 2: Use Penetrating Oil

If you're having trouble removing the retaining nut, apply penetrating oil to the threads and let it sit for a few minutes to help loosen the nut.

Tip 3: Don't Use a Hammer Directly on the Tie Rod End

Using a hammer directly on the tie rod end can damage it. Use a tie rod end separator or ball joint separator tool instead.

Tip 4: Mark the Tie Rod End's Position

Before you remove the tie rod end, mark its position with a paint marker to ensure that you reinstall it in the correct position. This will help maintain the correct alignment of your vehicle.

Conclusion

Removing tie rod ends from your vehicle may seem like a daunting task, but it is a necessary part of maintaining your car's steering system. Remember to work safely and take your time to avoid making any mistakes. Replacing a worn-out tie rod end can fix your vehicle's steering problems and make your driving experience safe and enjoyable.

How To Remove A Tie Rod End: A Comprehensive Comparison Guide

Introduction

Removing a tie rod end can be a daunting task for many car owners, especially those who are not familiar with the process. Whether you need to replace a worn-out tie rod end or upgrade your vehicle's steering system, knowing how to remove a tie rod end is essential. In this article, we will provide you with a comprehensive comparison guide on different methods of removing tie rod ends. We will cover the pros and cons of each method to help you choose the most suitable one for your needs.

Method 1: Using a Tie Rod Puller

One of the most common methods of removing a tie rod end is by using a tie rod puller. This tool is specifically designed to remove tie rod ends without damaging other parts of the steering system. To use a tie rod puller, follow these steps:

Step 1: Loosen the Tie Rod End Nut

Using a socket wrench, loosen the nut that holds the tie rod end to the steering knuckle. Do not remove the nut completely.

Step 2: Position the Tie Rod Puller

Position the tie rod puller around the tie rod end and tighten the center bolt until it is secure.

Step 3: Apply Pressure

Using a wrench or a ratchet, turn the center bolt of the tie rod puller clockwise until the tie rod end pops out of the steering knuckle.

Pros

- Quick and easy- Does not damage the steering system- Requires minimal effort

Cons

- Requires a tie rod puller tool- May not work on all types of tie rod ends

Method 2: Using a Ball Joint Separator

Another popular method of removing a tie rod end is by using a ball joint separator. This tool can be used on different types of tie rod ends and is effective in separating the tie rod end from the steering knuckle. To use a ball joint separator, follow these steps:

Step 1: Loosen the Tie Rod End Nut

Using a socket wrench, loosen the nut that holds the tie rod end to the steering knuckle. Do not remove the nut completely.

Step 2: Position the Ball Joint Separator

Position the ball joint separator between the tie rod end and the steering knuckle. Ensure that the forked side of the separator faces the steering knuckle.

Step 3: Apply Pressure

Using a hammer or a mallet, hit the top of the ball joint separator until the tie rod end pops out of the steering knuckle.

Pros

- Can be used on different types of tie rod ends- Does not require a specific tool

Cons

- May damage the steering knuckle if not used correctly- Requires more effort than using a tie rod puller

Method 3: Using a Hammer and Pry Bar

If you do not have access to a tie rod puller or a ball joint separator, you can still remove a tie rod end using a hammer and pry bar. This method requires more manual effort and may take longer than other methods. To use a hammer and pry bar, follow these steps:

Step 1: Loosen the Tie Rod End Nut

Using a socket wrench, loosen the nut that holds the tie rod end to the steering knuckle. Do not remove the nut completely.

Step 2: Position the Pry Bar

Position the pry bar between the tie rod end and the steering knuckle. Use the hammer to hit the pry bar until the tie rod end pops out of the steering knuckle.

Pros

- Does not require a specific tool- Can be done using common household tools

Cons

- May damage the steering knuckle if not used correctly- Requires more effort than other methods

Conclusion

Removing a tie rod end requires some knowledge and the right tools. The three methods we have discussed in this article are effective in removing tie rod ends. However, each method has its own pros and cons. If you want a quick and easy method, using a tie rod puller is ideal. If you want a more versatile tool that can be used on different types of tie rod ends, a ball joint separator is a good option. If you do not have access to these tools, using a hammer and pry bar can get the job done. Whichever method you choose, make sure to follow the steps carefully and take necessary precautions to avoid damaging your vehicle's steering system.

How To Remove A Tie Rod End

Introduction

A tie rod end plays a critical role in steering your vehicle. It connects the steering wheel to the front wheels and enables them to turn together. Since it is an important component, you need to ensure that it is in good working condition. However, if the tie rod ends wear out, you will need to replace them. For this reason, it is essential to learn how to remove a tie rod end. In this tutorial, we will guide you through the process step-by-step.

Tools Required

Before we start, you need to have some tools handy. You will require:

• Socket set
• Wrench set
• Ball joint separator
• Pliers
• Hammer

Step-by-Step Tutorial

Follow these steps carefully to remove a tie rod end:

Step 1: Raise the Vehicle

To access the tie rod end, you need to raise the car using a floor jack and place it on jack stands. Make sure the vehicle is securely supported before proceeding to the next step.

Step 2: Locate the Tie Rod End

The tie rod end is located near the wheel hub assembly and connected to the steering knuckle. Look for a cylindrical or rectangular-shaped part that protrudes from the steering knuckle.

Step 3: Remove the Cotter Pin

Use pliers to remove the cotter pin that secures the nut of the tie rod end. You will find the cotter pin where the tie rod end attaches to the steering knuckle.

Step 4: Loosen the Nut

Use a socket wrench to loosen the nut at the base of the tie rod end. Turn it counterclockwise until it is loose but do not remove it completely.

Step 5: Use Ball Joint Separator

Insert the ball joint separator tool between the steering knuckle and the tie rod end. Then, hit it with a hammer to separate the tie rod end from the steering knuckle. You may need to apply a bit of force to get it to come loose.

Step 6: Detach the Tie Rod End

Using a wrench, unscrew the tie rod end nut completely and remove it from the steering knuckle. Then, detach the tie rod end assembly from the steering wheel by removing the securing bolt.

Step 7: Inspect the Tie Rod End

Check the tie rod end for signs of damage or wear. If it shows signs of wear or damage, then it needs to be replaced.

Step 8: Attach the New Tie Rod End

Before attaching the new tie rod end, you need to ensure that it matches the old one in length and size. Screw the new tie rod end into the steering knuckle and tighten the nut using the wrench. Secure it with a new cotter pin.

Step 9: Tighten the Nut

With the new tie rod end in place, use a torque wrench to tighten the nut to the manufacturer's recommended torque setting.

Step 10: Lower the Vehicle

Lower the car from the jack stands and test drive it to check the steering system.

Conclusion

Removing a tie rod end may seem daunting at first, but with the right tools and instructions, it can be done easily. Always ensure that you take safety precautions when working on your car, including wearing protective gear and supporting the vehicle properly. By following these steps, you will be able to remove and replace a tie rod end quickly and efficiently.

How To Remove A Tie Rod End: A Comprehensive Guide

As a responsible car owner, you should always ensure that your vehicle is in top-notch condition. One of the essential components that you should be vigilant about is the tie rod end. It holds the steering knuckle firmly, ensuring that you steer your car safely along the road.

However, with prolonged usage, the tie rod end can wear out, leading to significant driving challenges such as unwarranted vibrations. This article aims to give you practical knowledge on how to remove a tie rod end to save you money on repairs and replacements.

What You Require

Before embarking on this process, it is essential to gather all the required tools to avoid any interruptions during the process. Some of the must-have tools include:

• Socket set of varying sizes (22mm, 18mm, 7/8 inch)
• Adjustable wrench or pliers
• Hammer
• Tie rod end separator
• Pry bar
• New tie rod end (In case you will replace the old one)

Step By Step Guide On How To Remove A Tie Rod End

Step 1: Safety Measures

Safety is paramount when handling any machine. Ensure that your car is parked in a level surface, switched off, and wheels blocked to enhance stability.

Step 2: Remove The Wheel Cover

The tie rod end resides at the connecting point between the steering knuckle and the steering rack on your car's front wheel. Start by removing the wheel cover from the affected end using a pry bar to expose the tie rod end.

Step 3: Loosen The Jam Nut

Using an adjustable wrench or pliers, loosen the jam nut by turning it counterclockwise to allow you to access the tie rod end easily. It's easier to use two wrenches for this task to avoid unnecessary damages.

Step 4: Remove The Cotter Pin

The cotter pin secures the castle nut in place. Use needle-nose pliers to pull out the cotter pin gently.

Step 5: Loosen The Castle Nut

Using a wrench, turn the castle nut counterclockwise to loosen it. You can tap it using a hammer to ease the process if it seems hard to turn.

Step 6: Separate The Tie Rod End

Pull apart the tie rod end from the steering knuckle using a tie rod end separator tool. Locate the separators on the threaded area of the tie rod end, then give it a few whacks with a hammer until it falls out.

Step 7: Removing The Tie Rod End From The RackEnd

Locate the nut that connects the tie rod end to the rack on the steering system, then unscrew it using a socket wrench while holding onto the tie rod end with a plier. Twist it firmly to loosen then remove it gently from the vehicle.

Conclusion

Removing a tie rod end is a simple process that saves you money on repair and replacement costs. Observing adequate safety measures enhances the efficiency of the process and prevents any damage to the wheel assembly.

With the step-by-step guide in this article, you now have the basic knowledge on how to remove tie rod end efficiently. Remember to use all required tools and seek professional assistance if you encounter any difficulties.

Good luck, and have a safe drive!

How To Remove A Tie Rod End: FAQs

What is a tie rod end?

A tie rod end is a crucial component of your vehicle's steering and suspension system. It connects the steering knuckle to the steering linkage and allows movement in the ball-and-socket joint to let the wheels turn left or right.

When should I replace my tie rod end?

Tie rod ends are subject to wear and tear over time. If you notice symptoms like steering wheel vibration, loose or wandering steering, uneven tire wear, or clunking noise when turning, it’s time to replace your tie rod ends.

How do I remove a tie rod end?

Here are the steps to remove a tie rod end:

1. Park your vehicle on a level surface and secure it with jack stands.
2. Remove the wheel assembly on the side where you need to replace the tie rod end.
3. Loosen the jam nut that secures the tie rod to the steering linkage.
4. Remove the cotter pin and loosen the nut that holds the tie rod end to the steering knuckle using a wrench or socket.
5. Use a ball joint separator tool to release the tie rod end from the steering knuckle if it is stuck.
6. Remove the tie rod end from the steering linkage by turning it counterclockwise.

Do I need to have an alignment after replacing tie rod ends?

Yes, it is highly recommended to get a wheel alignment after replacing tie rod ends as it affects the steering and handling of your vehicle. Unaligned wheels can cause tire wear, poor fuel economy, and unsafe driving conditions.

Can I replace my own tie rod ends?

Replacing tie rod ends requires a certain level of mechanical skill and the right tools. If you are an experienced DIY mechanic, you can replace tie rod ends on your own. However, if you lack experience or confidence with mechanical work, it is best to seek professional help.
